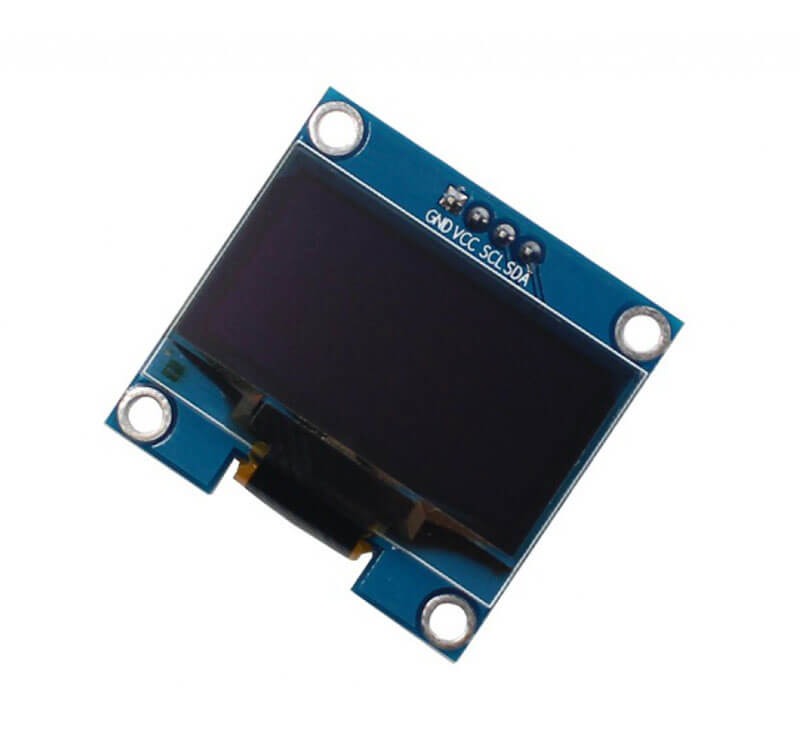

OLED Display 0.96″ I2C

• Resolution: 128X64
• Color: Blue and Yellow
• Viewing angle: greater than 160 degrees
• Supported platforms: for Arduino, 51 series, MSP430 series, STIM32 / 2, SCR chips
• Low power consumption: 0.04W during normal operation
• Support wide voltage: 3.3V-5V DC
• Working temperature: -30-80 degrees
• Volume: 27MM * 27MM * 4.1MM
• Driver IC: SSD1306
• Communication: IIC, only two I / O ports
• No font: The software takes word modulo
• Backlight: OLED self light, no backlight

Interface:

• VCC: 3.3-5V
• GND: Ground
• SCL: Serial Clock
• SDA: Serial Data
