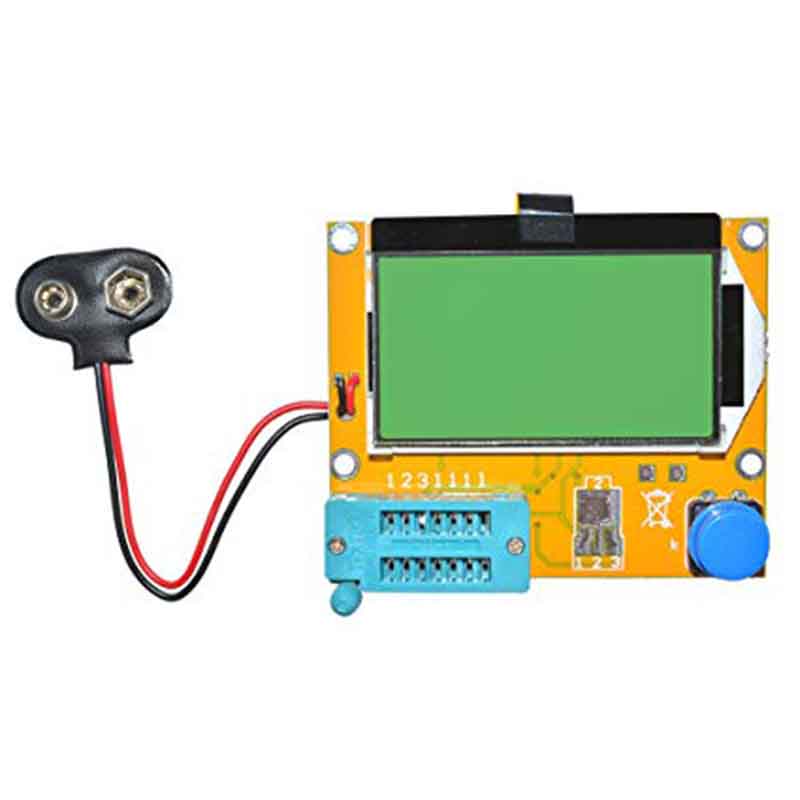

LCR Component Tester Transistor Diode Capacitance (ALL in one) with catching

Specifications:

• Resistor: 0.1ω-50Mω
• Capacitor: 25pF-100000uF
• Inductance: 0.01mH – 20H
• Working power: DC-9V
• Standby current: 0.02uA
• Operating current: 25mA
• Material: Metal+Plastic
• Size: about 11.1cm/4.37″x2.6cm / 1.02″x8.5cm/3.34″
  [Conversion: 1cm=0.3937 inch, 1inch=2.54 cm]

Description:

• Add the boot voltage detection function
• Automatic detection of NPN and PNP transistors, N -channel and P-channel MOSFET, diodes (including dual diode), thyristors, transistors, resistors and capacitors, and other components
•  Automatic test out the pin element and displayed on the LCD
• Can be detected to determine the transistor emitter forward bias voltage of the transistor, MOSFET protection diode and the amplification factor of the base
• Measure the gate threshold voltage and gate capacitance of the MOSFET
• 1602 LCD display uses LCD (12864 LCD with backlight)
• High test speed, valid component test: 2 seconds (except in the larger capacitor of large capacitance measurement also takes a long time, the measured time of one minute is normal)
• One button operation, power-on test, get a key
• Power consumption off mode: less than 20 nA of
• Auto power-off function to avoid unnecessary waste, saving battery power, improved battery life
