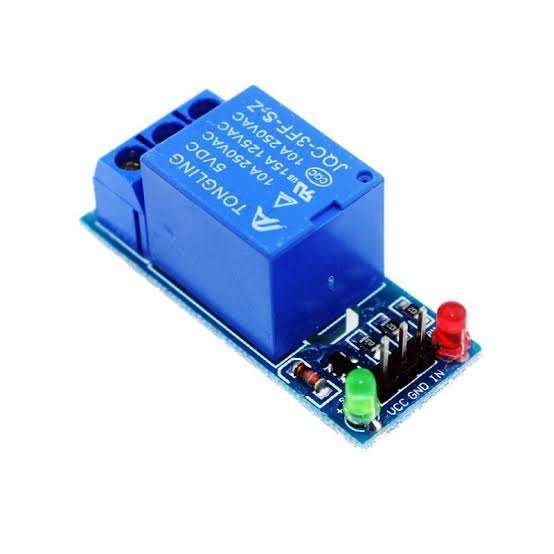

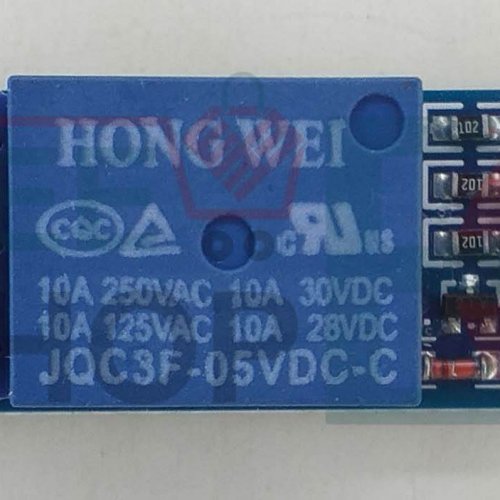

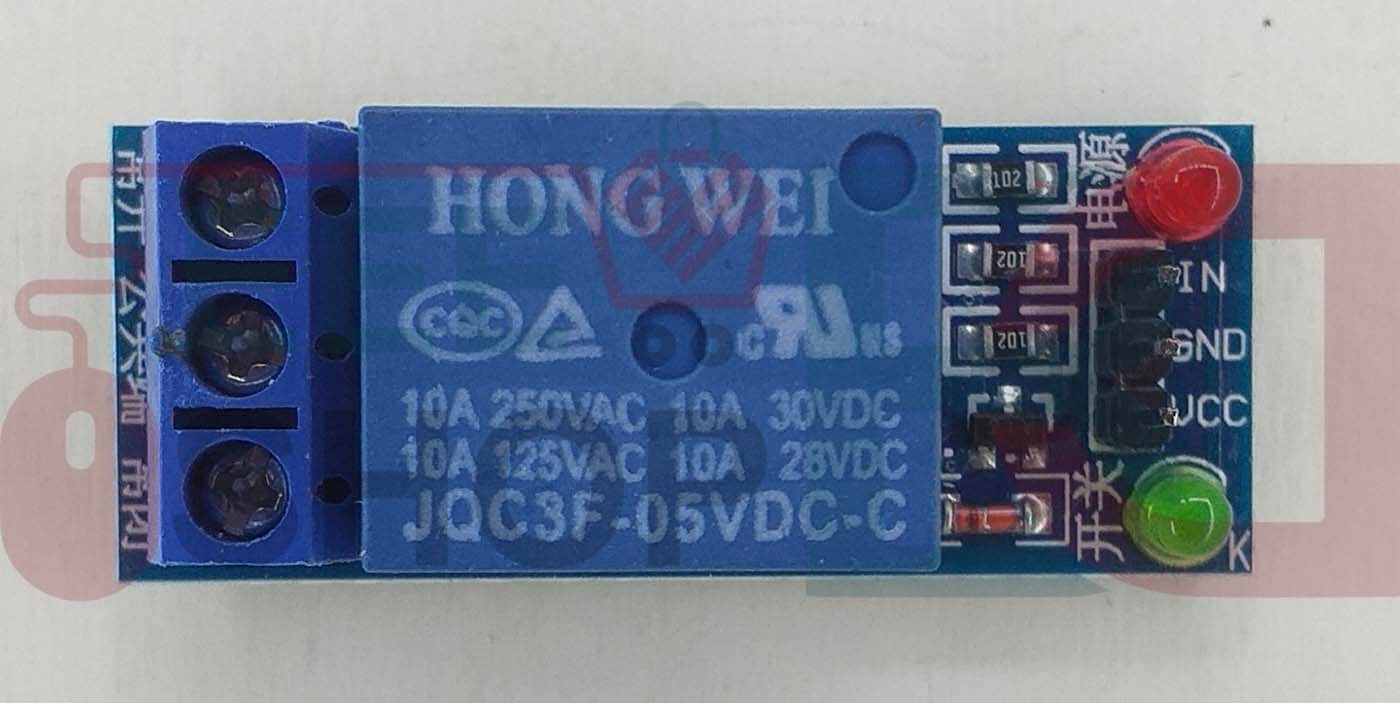

1 Channel 5V Relay Module
৳ 80.00
PRODUCT CONTENTS:
- 1 — Single Channel Relay Module
SPECIFICATIONS:
| Supply Voltage | 3.75 to 6 V |
| Supply Current with Relay De-Energized | 2 mA |
| Supply Current with Relay Energized | 70 to 72 mA |
| Input Control Signal | Active Low |
| Input Control Signal Current | 1.5 to 1.9 mA |
| Relay Max Contact Voltage | 250 VAC or 30 VDC |
| Relay Max Contact Current | 10 A |
| Dimensions | |
| Length | 43 mm (1.69″) |
| Width | 17.5 mm (0.69″) |
| Height | 17 mm (0.67″) |
| Weight | 13 g (0.459 oz) |
