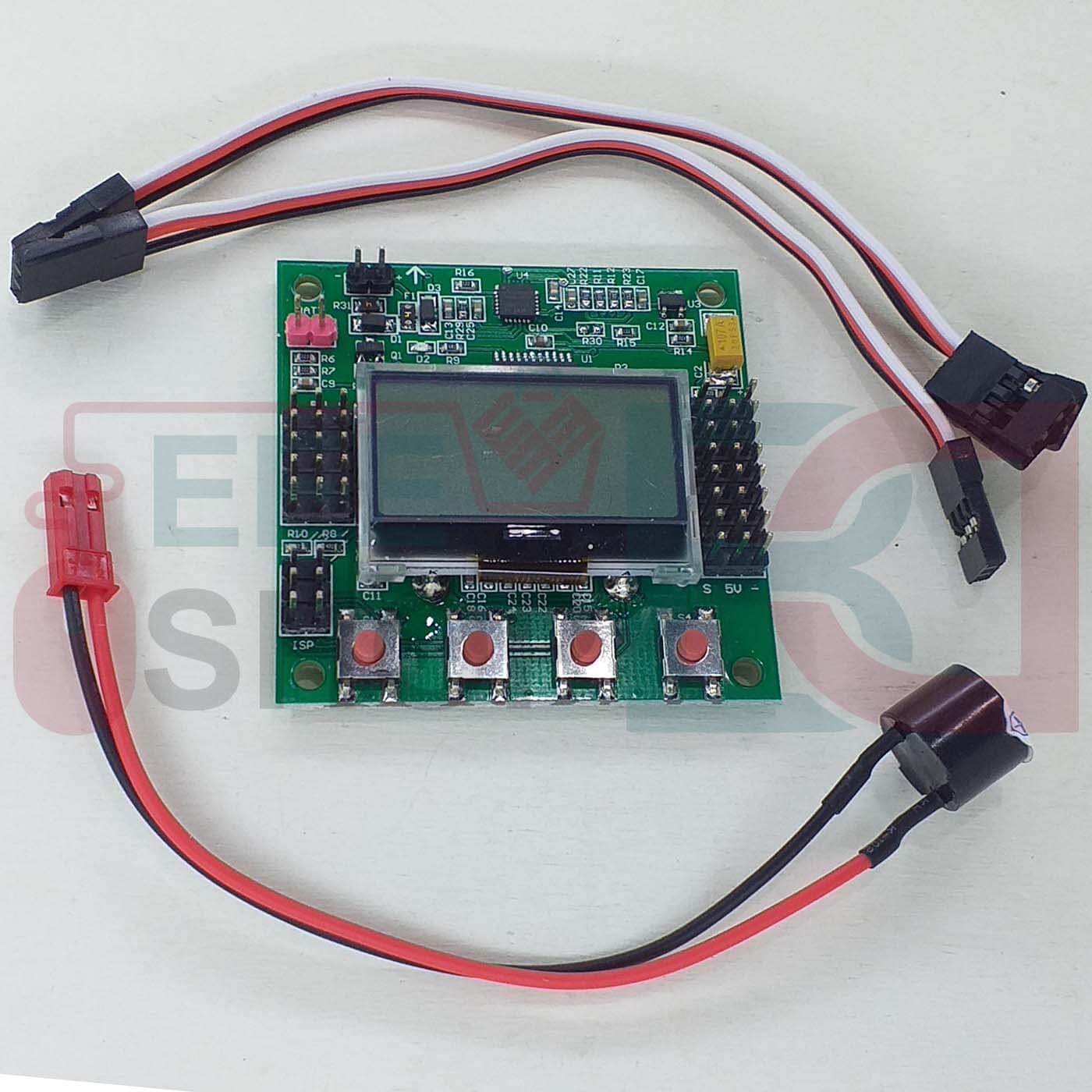

Flight Controller (KK)

Size: 50.5mm x 50.5mm x 12mm
Weight: 21 gram (Inc Piezo buzzer)
IC: Atmega324 PA
Gyro: InvenSense Inc.
Accelerometer: Anologue Devices Inc.
Auto-level: Yes
Input Voltage: 4.8-6.0V
AVR interface: standard 6 pin.
Signal from Receiver: 1520us (5 channels)
Signal to ESC: 1520us

Description:

Designed by the Grandfather of the KK revolution, Rolf R Bakke, exclusively for, the KK2.0 is the evolution of the first generation KK flight control boards. The KK2.0 was engineered from the ground up to bring multi-rotor flight to everyone, not just the experts. The LCD screen and built-in software makes install and setup easier than ever. A host of multi-rotor craft types are pre-installed. simply select your craft type, check motor layout/propeller direction, calibrate your ESCs and radio and your ready to go! all of which is done with easy to follow on-screen prompts!

The original KK gyro system has been updated to an incredibly sensitive dual chip 3 Axis gyro and single chip 3 axis accelerometer system making this the most stable KK board ever and allowing for the addition of an Auto-level function. At the heart of the KK2.0 is an Atmel Mega324PA 8-bit AVR RISC-based microcontroller with 32k of memory. An additional 2 motor output channels have been added to the KK2.0 allowing for a total of 8 motors to be controlled (Octocopter). A handy Piezo buzzer is also included with the board for audio warning when activating and deactivating the board.

If your new to multi-rotor flight or have been unsure about how to setup a KK board then the KK2.0 was built for you. The 6 Pin USBasp AVR Programming interface ensures future software updates will be quick and easy.
