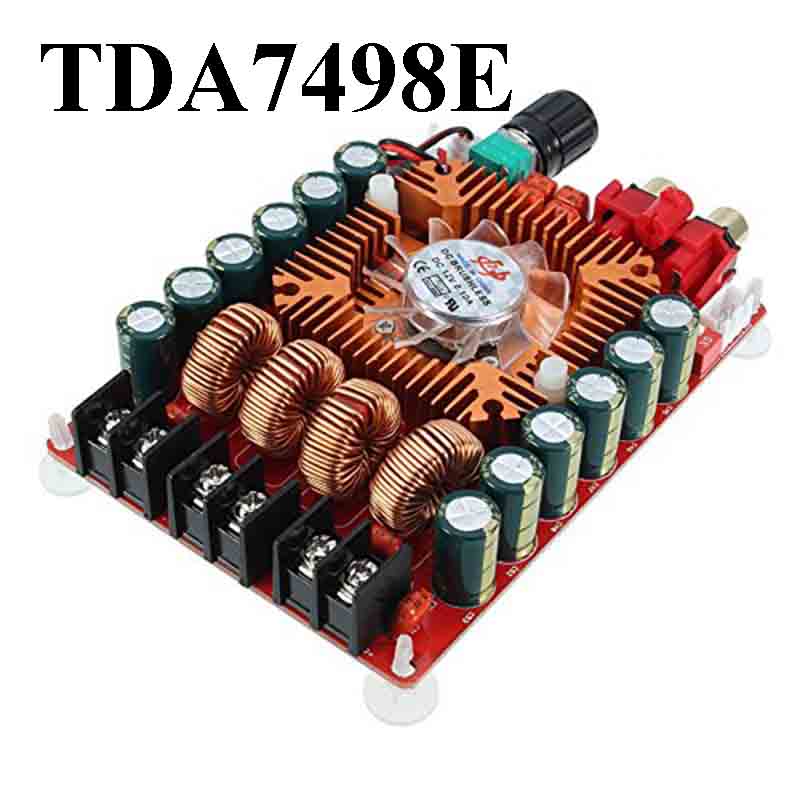

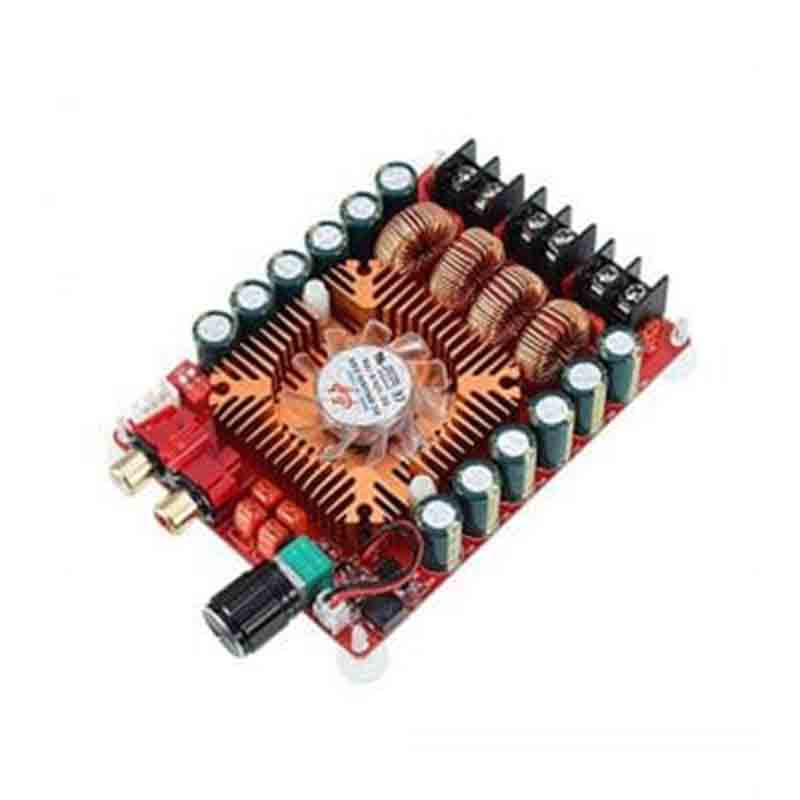

TDA7498E Stereo BTL220W Mono Dual Channel Digital Power Amplifier Board
৳ 2,185.00
The sound quality is very good and it can drive 4/6/8 ohm speakers which has enough and high output power 2x160W.
Features:
- High power digital output amplifier.
- The sound quality is very good using this module.
- Two stereo channels 2x160W.
- DC 15-36V power supply with reverse polarity protection.
- When the temperature of the heat sink is raised to a certain point, the cooling fan will operate.
- Support BTL mode (on back of amplifier board J1, J2, J3, J4 short), 36V 3ohm for mono 220W output.
- Applicable impedance: 4/6/8 ohms (8 ohms is the best).
Specifications:
- Amplifier Chip: TDA7498E
- Operating voltage: DC 15-36V (Recommend 32V, 8A)
- Output Power: 2x160W
- Channels: Two-channel Stereo
- Efficiency: 85%
- Applicable Impedance: 4/6/8 ohms (8 ohms is best)
- PCB Board Size: 108x78mm/4.25*3.1in
- Weight: 170g/6.02oz
Package List:
- 1xDigital Amplifier Board
