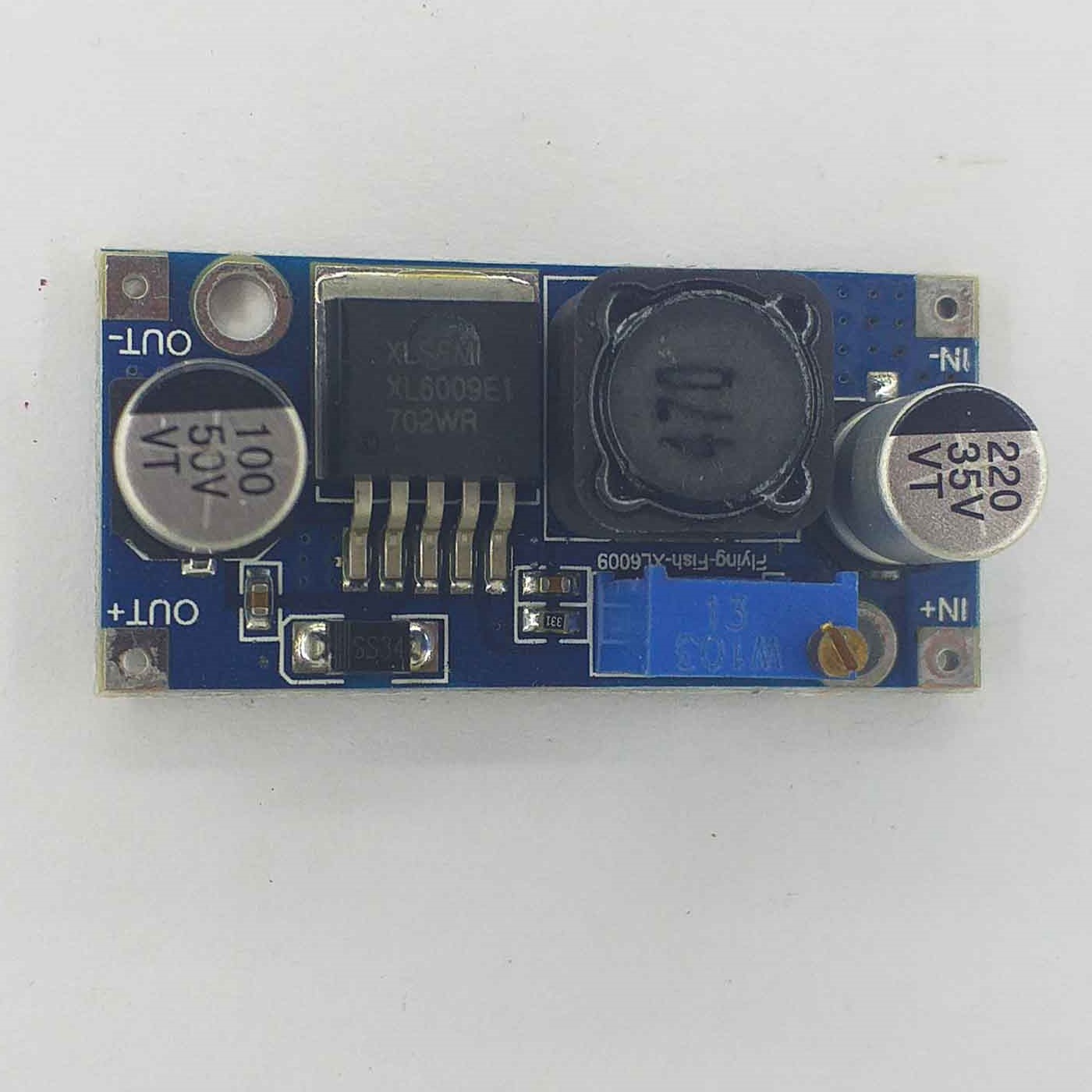

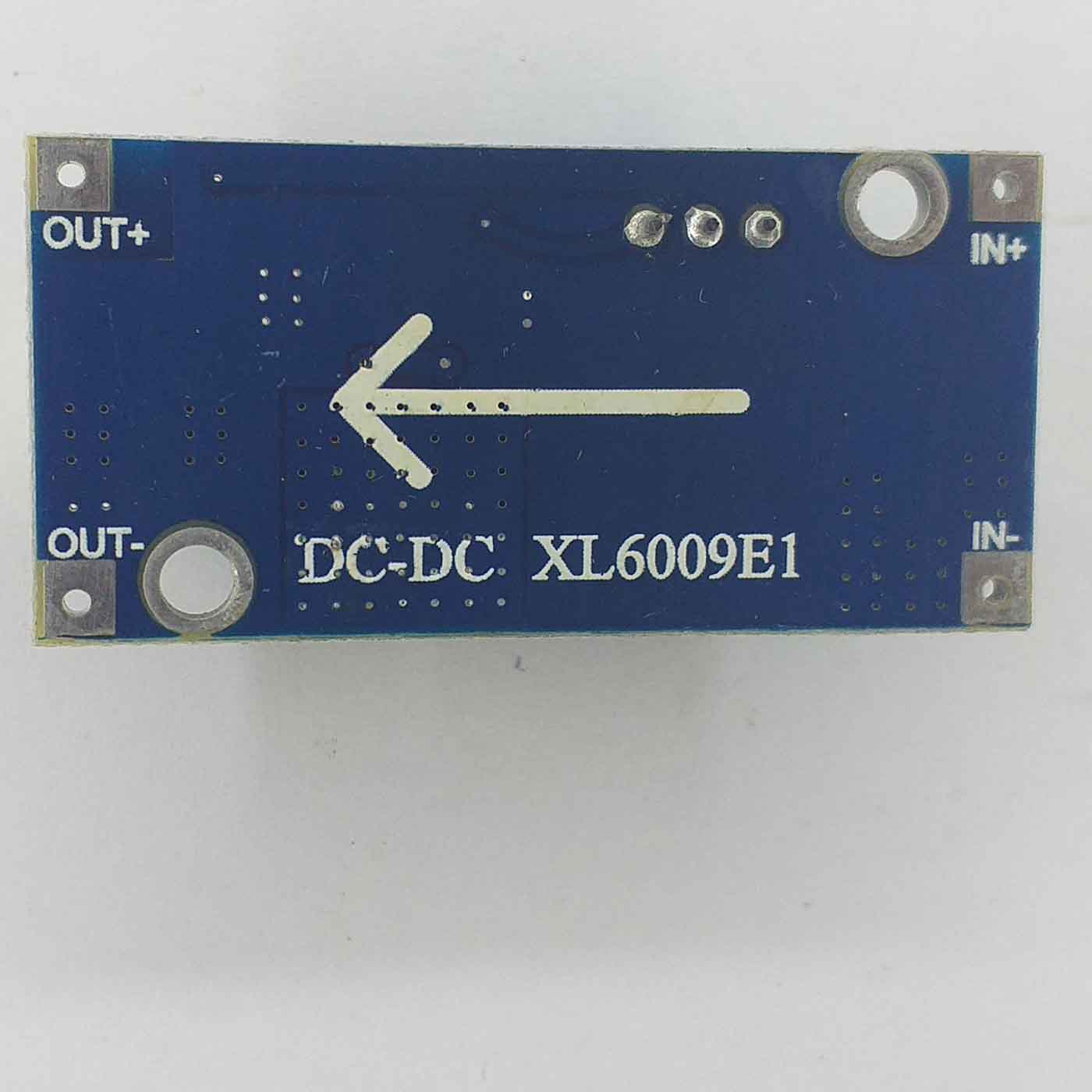

DC-DC Step Up Boost Converter 5-36V XL6009E1
৳ 100.00
Available on backorder
- Module nature: Non-Isolated Boost (BOOST)
- Rectification method: Non-synchronous rectification
- Input range: 3V ~ 32V
- Output range: 5V ~ 35V
- Input Current: 4A (max), no load 18mA (5V input, 8V output, no load less than 18mA. The higher the voltage, the greater
- the no-load current.)
- Conversion efficiency: <94% (the greater the pressure difference, the lower the efficiency)
- Switching frequency: 400KHz
- Output ripple: 50mV (the higher the voltage, the greater the current, the larger the ripple)
- Load Regulation: ±0.5%
- Voltage regulation: ±0.5%
- Operating temperature: -40 ℃ ~ + 85 ℃
- Dimensions: 43mm * 21mm * 14mm (L * W * H)
