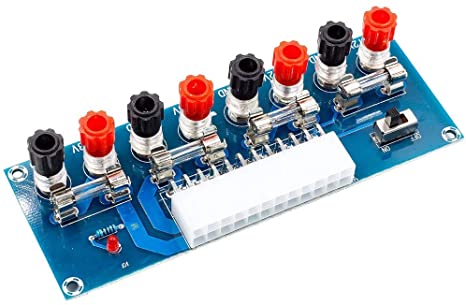

XH-M229 Desktop Computer Chassis Power Supply Atx Transfer Board Power Take Off Board Power Output Terminal Module

Product name: ATX power supply board
Compatible with the port: ATX (compatible with partial BTX type)
The PIN number: 24 pin
Switch: Yes
Number of sets of output: Four sets of different voltages
Board Size: 128x48x30 mm/5.04×1.89×1.18 (L*W*H)

Feature:
1. With power output indicator.
2. With module switch to turn off output.
3. The output terminal can pass the maximum current.
4. With output protection fuse,four groups correspond to four road output.

notes:
Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
Due to the manual measurement and different measurement methods, please allow 1-5 mm deviation. Thanks!

descriptions:
There is a -12V,a +12V,a 5V,a 3.3V terminal.
Each output take a 5A fuse. Overcurrent ,fuse can be replaced by yourself.
Each power rail has a corresponding ground connection; all of the power rails are brought out to a binding post.

About the 24pin port:
The 24pin port powers the computer motherboard in the host computer. Usually, this port is used together.

package including

1 * XH-M229 PC ATX Benchtop Power Adapter Board
