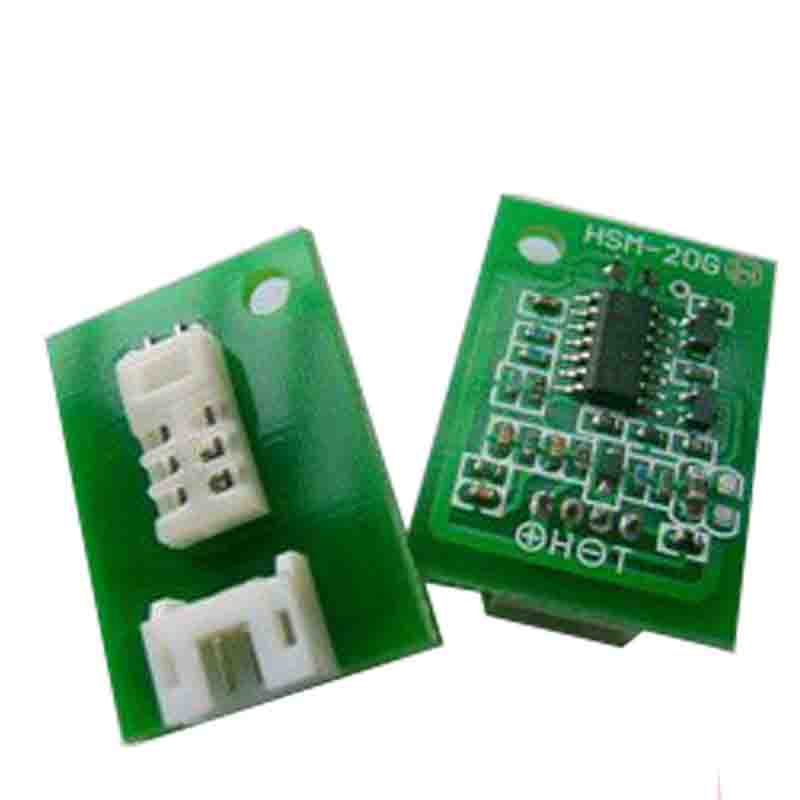

HSM-20G Humidity And Temperature Sensor

The module of HSM-20G is essential for those applications where the relative humidity can be converted to standard voltage output.

Applications

• Humidifiers & dehumidifiers
• Air-conditioner
• Humidity data loggers
• Automotive climate control
• Other applications

Specifications

• Characteristics: HSM-20G
• Input voltage range: DC 5.0±0.2V
• Output voltage range: DC 1-3.19V
• Measurement Accuracy: ±5% RH
• Operating Current (Maximum): 2mA
• Storage RH Range: 0 to 99% RH
• Operating RH Range: 20 to 95% (100% RH intermittent)
• Transient Condensation: < 3%RH
• Storage: -20℃ to 70℃
• Operating: 0℃ to 50℃
• Hysteresis (RH @ 25℃): MAX 2%RH
• Long Term Stability(typical drift per year): ±1.5%
• Linearity: Linearity
• Time Response(63% step change): 1 min
• Dimensions(L*W): 34mm*22mm*9mm
